VARIOUS EQUIPMENT
We offer additional equipment to complete your processing plant. Adding one or more of these machines to your operation will ensure a high quality of your prime product. This way, you are certain that your plant is competitive, efficient and exactly right for your product sorting needs.
Short-cuts to the dofferent machine categories:
De-awner | Straw separator | Drum cleaner | Seed brushing machine | Flat screen seed sizer | Belt grader | Spiral separator | Fluid bed dryer
rough pre-cleaners - de-awners, straw separators & drum cleaners
CW
grain de-awner
Capacity: 6-15 t/h
Models: CW-600, CW-800, CW-1000, CW-1250, CW-1500
The CW de-awner is used for pre-treatment of various grain types; the purpose of the de-awning operation is to remove awns from barley kernels, loose husks from wheat, and to clip oat kernels

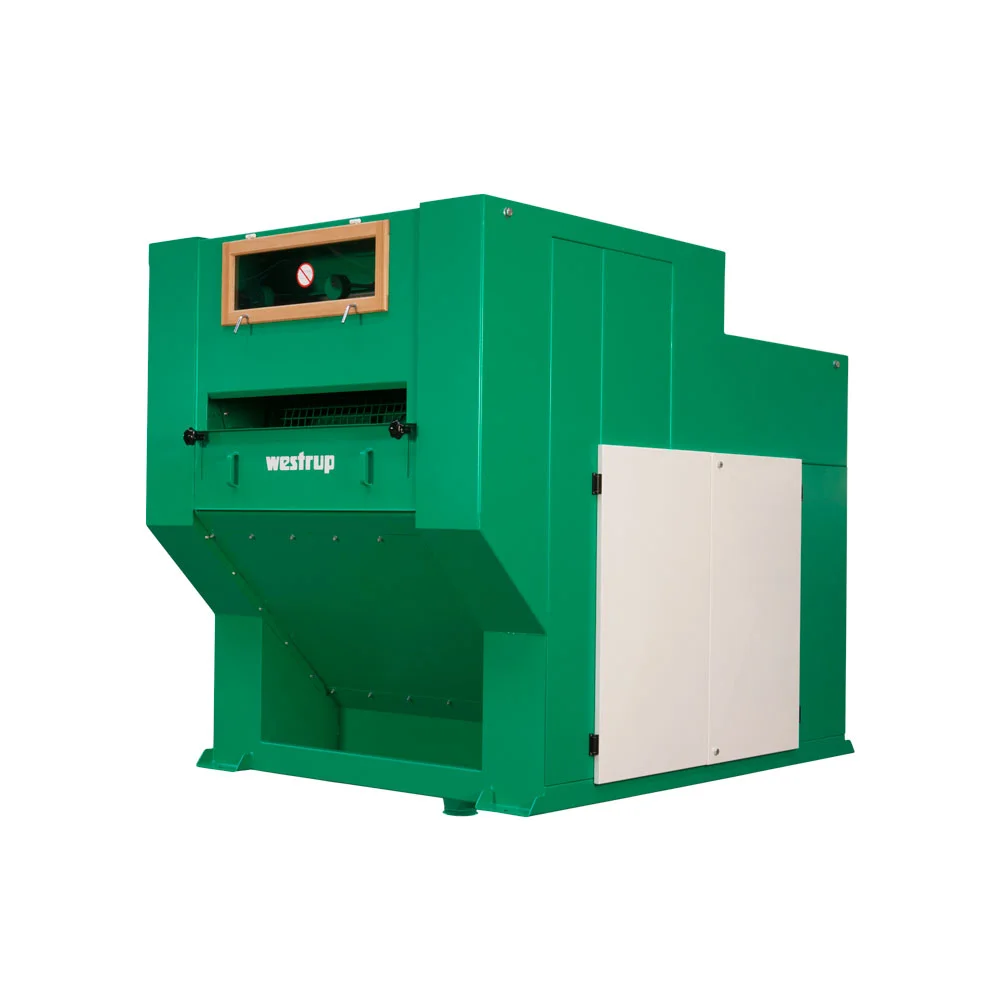

HG
Straw separator
Capacity: 80-250 t/h
Models: HG-1000, HG-1250, HG-1500, HG-2000, HG-2500
The HG straw separator is an efficient pre-cleaner of modular design, which can be operated as an independent unit
DP
Drum cleaner
Capacity: 100-200 t/h
Models: DP-630 | DP-950
The DP separates coarse impurities such as paper, pieces of wood, maize leaves and cobs etc. from the main seed
brushing machines for organic and conventional seed

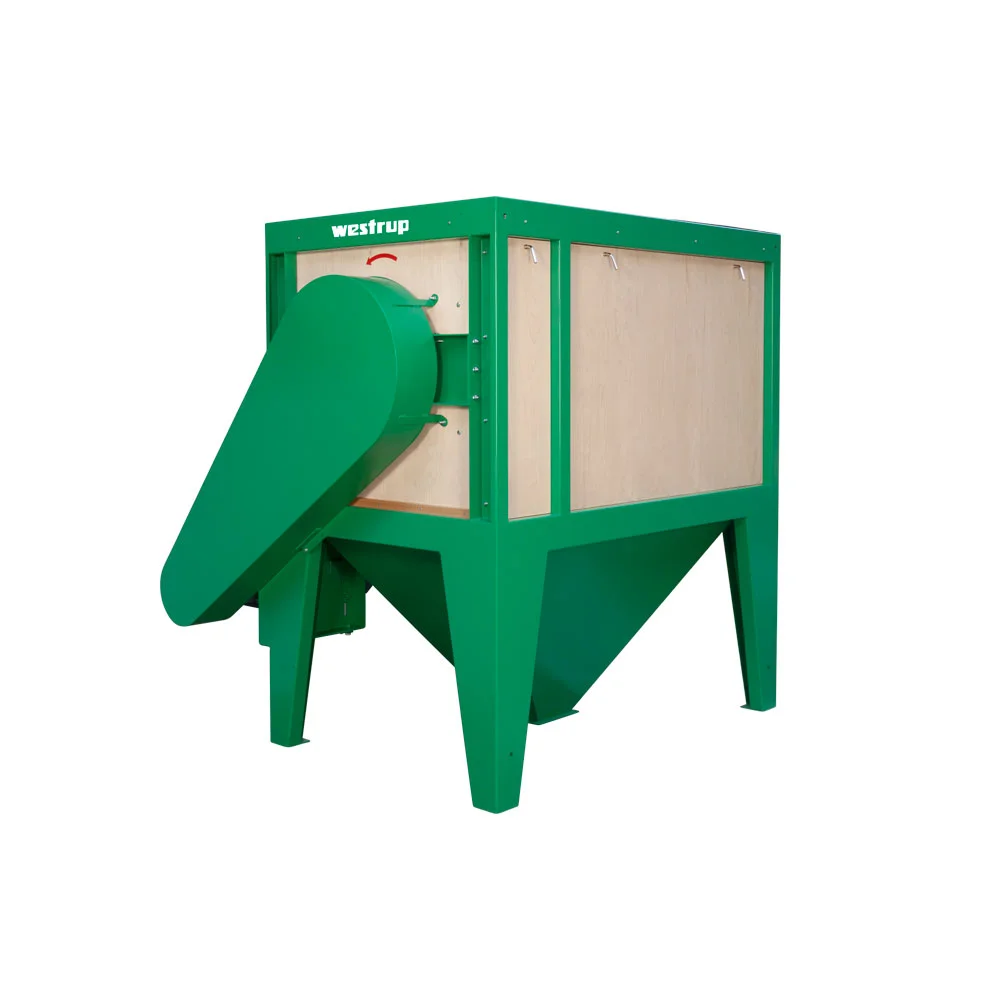

HA
seed brushing /polishing /scarifying machine
Capacity: 0.5-1.5 t/h
Models: HA-400, HA-600, HA-800
The HA brushing machine is suitable to be used in grass seed installations, especially for splitting twin kernels. It can also be used as a polisher or for scarifying seed
HA
Organic seed brushing machine
Capacity: 0.5-1.5 t/h
Models: HA-400, HA-600, HA-800
This brushing machine reduces many of the seed-born diseases following organic farming, e.g. common bunt, which is a very devastating disease in wheat production
Seed sizers and graders
VBS
flat screen seed sizer
Capacity: 0.7-1.5 t/h
Models: VBS-600, VBS-1000
The VBS flat screen sizer is especially used for low capacity separation of different crops. It is a very flexible unit for pre-cleaning, fine cleaning, and grading according to chosen screen perforations and crops to be processed
BG
seed belt grader
Models: BG/1, BG/2
The BG belt grader is designed for separation of rough surface seeds from smooth surface seeds, and the belt grader separates round from flat seeds
HT
spiral separator
Capacity: 0.1-0.8 t/h
Models: HT-2, HT-4, HT-6, HT-8
The HT spiral separators are used to separate round seeds from flat seeds by means of gravity
dryer unit after treatment
FBD
fluid bed dryer
Capacity: 6-15 t/h
Model: FBD-1500
The FBD fluid bed dryer is designed as a surface dryer after chemical treatment of a product and can be used for most kinds of treated seeds
FAQ ON ROUGH PRE-CLEANING, SEED SIZERS AND FLUID BED DRYERS
-
De-awners are used for pre-treatment of various grain types; the purpose of the de-awning operation is to remove awns on barley kernels, loose husks from wheat and to clip oat kernels.
The de-awner can be used where heavy de-awning is required but also for products where only a light de-awning is needed. The degree of de-awning depends on the amount of time the product takes to pass through the housing of the machine which can be adjusted when the machine is in process.
-
The straw separator is an efficient pre/ rough-cleaner suitable for intake plants with high moisture-content crops containing a particularly high amount of straw/ pods and coarse impurities.
The large diameter rotating straw drums and manually adjustable product flow plates gives an optimal removal of straw and other large particles in combination with a strong airflow to catch light impurities. Two mesh sizes are available to meet the requirements of any crop.
The straw separator is suitable for intake sections and silos to relieve the following machines and conveyors.
-
The drum cleaner (DC) is used to remove large impurities from grain in the milling and similar industry to prevent damage of equipment later in the flow.
The drum pre-cleaner (DP) is used to remove very large impurities, such as paper, pieces of wood, bushes or corn cobs from the main product.
-
Brushing machines are useful in vegetable and grass seed installations, especially for splitting twin kernels and polishing seeds and leaves. The machines are easy to clean and therefore very suitable for basic seed plants and installations to produce flower and garden seeds.
The rotating shaft can be installed with different types of brushes or steel beaters to ensure a highly efficient treatment of a wide range of products, with easy adjustment of the distance of brushes to the mantle.
-
A size separator is designed to separate round seeds from flat seeds by means of gravity.
The machine can be built with one, two, four, six, or eight spirals per cabinet, depending on the capacity. One spiral gives 2 fractions, one round and one flat.
-
The spiral separator is a vertical spiral where the flat seeds will stay inside the spiral and the round seeds will be pushed over the edge of the spiral by means of gravity.
-
A size separator can be used on all round seeds that are broken, such as soya bean, rape seeds, coriander etc.
-
Our fluid bed dryers are designed as a surface dryer to use after a chemical treatment process and can be used for most kinds of treated seeds.
The inlet section is built to ensure an even spread of product over the full working width of the machine.
-
The dryer has a vibrating screen with heavy suction which creates an airflow through the screen and on to the product, drying the liquid on the seeds.
Hot air can be added if there is a very high amount of liquid added to the seeds.
-
If your product demands a high percentage of liquid added in the seed treater the fluidized bed dryer is essential to avoid wet seeds from sticking together, creating problems in the sowing process.
