PRE-CLEANERS
PREPARE YOUR PLANT FOR BETTER CLEANING
To prepare the product for storage and alleviate subsequent machines, air screen pre-cleaners are employed to eliminate significant impurities from incoming seeds and grains. Westrup provides a broad selection of air screen pre-cleaning machinery designed for various purposes, including cleaning, sizing, pre-cleaning and market-grade cleaning. The capacities of these machines vary, catering to both grain storage facilities with lower capacity needs and high intake plants requiring higher capacity machines.
Many of the Westrup pre-cleaners are part of our modular program allowing for customization to match you needs.
CC
Capacity: 125-380 t/h
Models: CC-1250, CC -1500, CC-1750, CC-2000, CC-2500
The CC high capacity modular cleaner is a very versatile seed and grain cleaner performing at high capacities
SP
Capacity: 100-250 t/h
Models: SP-1000, SP–1250, SP-1500, SP-1750, SP-2000, SP-2500
The SP high capacity modular cleaner is a very versatile cleaner performing at high capacities
SD
Capacity: 50-150 t/h
Models: SD-1000, SD–1250, SD-1500, SD-1750, SD-2000
The SD mid-range modular cleaner is a very versatile cleaner applicable for many seed and grain cleaning purposes
SI
Capacity:50-75 t/h
Models: SI-50, SI-60, SI-70
The SI pre-cleaner is designed for intake plants. The long double air separation channel across the full width of the cleaner with perfectly balanced and very precise air control gives a very accurate extraction of dust etc. as the product exits the machine
SAC
Capacity: 30-50 t/h
Moels: SAC-1000, SAC-1250, SAC-1500
The SAC silo separator is ideally suited to dress malting barley and milling grain to the highest quality commercial sample at a reduced throughput
SAB
Capacity: 25-45 t/h
Models: SAB-1000, SAB-1250, SAB-1500
The SAB silo separator is first and foremost designed to master pre-cleaning jobs at modern intake plants

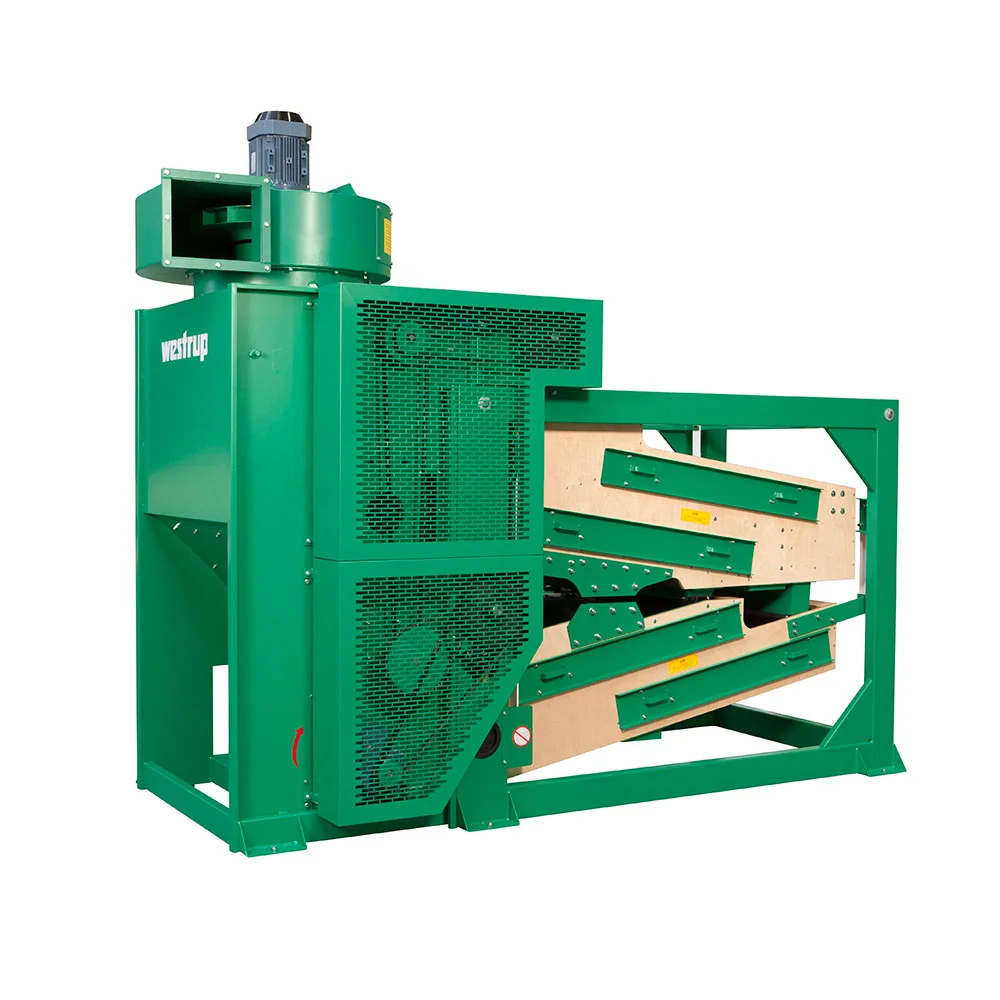

AS
Capacity: 25-38 t/h
Models: AS-1000, AS-1500
The AS pre-cleaner is designed to be used mainly in grain store applications where it is desirable to pre-clean the incoming grain

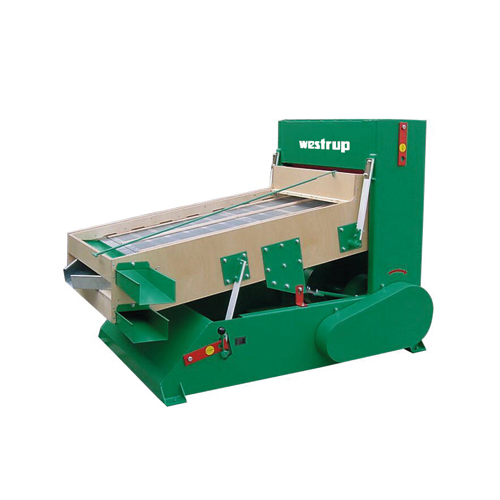

PC
Capacity: 12-30 t/h
Models: PC-600, PC-1000, PC-1250, PC-1500
The PC pre-cleaner is suitable for grading and calibration of all kinds of seed and grain products
S-600
Capacity: 2 t/h
Models: S-600
The S-600 mobile seed grain cleaner is specially designed for use on larger farms or smaller cleaning plants where emphasis is placed on the quality of the prime product. The S-600 is designed for most kind of free -floating seeds, like wheat, barley, rye, oats, triticale and similar seeds
FAQ ON PRE-CLEANERS
-
Air screen pre-cleaners are used to remove large and small impurities from incoming seed and grain to relieve the following machines and ready the product for storage.
We offer a comprehensive range of air screen pre-cleaning equipment for different purposes, among these for cleaning, sizing, precleaning, market grade cleaning and food grade cleaning. Capacities range from low-capacity machines suitable for grain storage facilities to high-capacity machines suitable for high intake plants.
-
All the Air screen pre-cleaners work with a combination of screens and airflow.
Firstly, a pre-suction catches light impurities and dust.
Secondly, a combination of screens, depending on capacity, separates large and small impurities. Screen sizes can be changed depending on product.
Lastly, a heavy after suction of the product catches even more light product with the same size as the main product.
-
Pre-cleaning is the first process after harvesting and is required to remove all unwanted product from the prime product. By removing the large and small impurities and dust, you prolong the storage time and reduce the risk of disease in the product. You also prevent blocking of silo outlets and further equipment in the process.
